Choosing the right HDMI test pattern generator for 8K resolution can be challenging, with options ranging from portable devices suited for fieldwork to advanced professional testers. The BZBGEAR 1080P FHD/4K UHD/8K HDMI 2.1 48GBPS Portable Signal Test Generator offers unmatched portability for on-the-go testing. Meanwhile, the JTECH-40GA provides extensive features ideal for professional troubleshooting, and the TESTSIG 18Gbps HDMI 2.0b strikes a balance for those needing versatile, mid-range tools. Each choice involves tradeoffs, primarily around complexity, portability, and resolution support.
Get business pricing on your home office setup
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- The BZBGEAR generator excels in portability but is limited to shorter battery life and slightly lower feature complexity.
- JTECH-40GA offers the highest resolution support with advanced analysis tools, suited for professional environments.
- TESTSIG provides a solid mid-range solution with good resolution support and comprehensive testing features for typical AV installations.
- Tradeoffs include battery life, ease of use, and whether high-end professional features justify the cost.
- Your choice should be guided by whether portability, professional depth, or a balance of both is most important.
| BZBGEAR 1080P FHD/4K UHD/8K HDMI 2.1 48GBPS Portable Signal Test Generator and Analyzer |  | Best for Field Testing and On-the-Go Use | Resolution Support: 8K60, 4K120, 4K80, 1080p | HDCP Compatibility: 1.4 & 2.3 | Video Output: up to 8K60 10bit 4:2:0, 8K30 4:4:4, 4K120Hz | VIEW ON AMAZON | See Our Full Breakdown |
| HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1, HDCP 2.3, CEC [JTECH-40GA] | ” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_ML2_.jpg” link=”0″] | Best for Professional Testing and Troubleshooting | Resolution Support: Up to 8K@60Hz | Bandwidth: 40Gbps | HDR: Supported | VIEW ON AMAZON | See Our Full Breakdown |
| TESTSIG 18Gbps HDMI 2.0b Signal Generator & Analyzer |  | Best for Mid-Range, Versatile Testing | Resolution Support: up to 4K@60Hz | Video Bandwidth: 18 Gbps | Test Patterns: 31 | VIEW ON AMAZON | See Our Full Breakdown |
| hdmi test pattern generators for 8k | Resolution Support | HDR | Test Patterns | HDCP |
|---|---|---|---|---|
| BZBGEAR 1080P FHD/4K UHD/8K HD | 8K60, 4K120, 4K80, 1080p | — | — | — |
| HDMI Test Signal Generator Ana | Up to 8K@60Hz | Supported | 33 | 2.3/1.4 |
| TESTSIG 18Gbps HDMI 2.0b Signa | up to 4K@60Hz | Supported | 31 | 2.2 / 1.4 |
More Details on Our Top Picks
BZBGEAR 1080P FHD/4K UHD/8K HDMI 2.1 48GBPS Portable Signal Test Generator and Analyzer
This portable device stands out for supporting resolutions up to 8K60 and 4K120, making it ideal for quick, accurate testing in diverse environments. Its rechargeable battery allows for up to 3 hours of use, perfect for field technicians. Compared with the more feature-rich JTECH-40GA, it sacrifices some advanced analysis tools in favor of portability and simplicity. Conversely, it outperforms the TESTSIG in terms of resolution support, but its limited battery life and lack of extensive connectivity options can be drawbacks for prolonged use.
Pros:- Supports resolutions up to 8K60 and 4K120 for detailed testing
- Portable and rechargeable, ideal for on-site use
- Compatible with HDMI 2.1 features and HDCP testing
Cons:- Limited battery life of up to 3 hours
- Features may be complex for casual users
- No additional connectivity options for integration
Best for: Technicians needing portable, high-resolution testing in the field
Not ideal for: Users requiring detailed analysis or professional troubleshooting in a lab setting
- Resolution Support:8K60, 4K120, 4K80, 1080p
- HDCP Compatibility:1.4 & 2.3
- Video Output:up to 8K60 10bit 4:2:0, 8K30 4:4:4, 4K120Hz
- HDR Support:4K2K@60 4:2:0 10/12bit
- Battery Life:up to 3 hours
- Input/Output:HDMI 2.1
Our verdict“A highly portable, high-resolution test generator best suited for field technicians needing quick, reliable signals in diverse locations.”

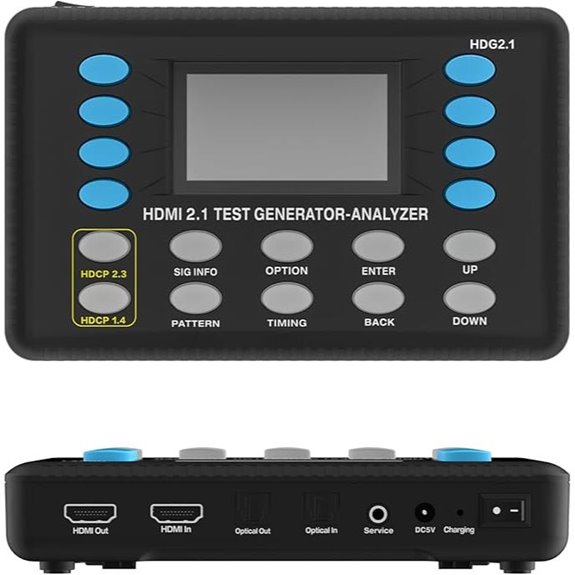

HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1, HDCP 2.3, CEC [JTECH-40GA]
” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_ML2_.jpg” link=”0″]Best for Professional Testing and Troubleshooting
View on AmazonThis model is geared toward professionals needing detailed analysis and extensive testing options. It supports full 8K resolution at 60Hz with HDR and 40Gbps bandwidth, offering a broad set of features like EDID read/write and CEC control. While its advanced capabilities make it perfect for troubleshooting complex setups, its complexity can be daunting for casual users. Unlike the more straightforward BZBGEAR, it requires familiarity with HDMI protocols, but it compensates with comprehensive diagnostic tools that can verify signal integrity at the highest resolutions.
Pros:- Supports 8K@60Hz with HDR and 40Gbps bandwidth
- Includes numerous test patterns and resolution options
- Advanced analysis features like EDID write/read and CEC control
Cons:- Steeper learning curve due to complex features
- Requires familiarity with HDMI testing protocols
- No specific price info, potentially expensive
Best for: AV professionals and technicians working in high-end installation or troubleshooting
Not ideal for: Casual users or those new to HDMI testing
- Resolution Support:Up to 8K@60Hz
- Bandwidth:40Gbps
- HDR:Supported
- Video Formats:RGB/YCbCr
- Test Patterns:33
- HDCP:2.3/1.4
- Power:Rechargeable 2910mAh
- Connectivity:HDMI 2.1, S/PDIF
Our verdict“A professional-grade, feature-rich generator and analyzer ideal for complex, high-resolution testing environments.”
TESTSIG 18Gbps HDMI 2.0b Signal Generator & Analyzer
This device offers a balanced approach, supporting HDMI 2.0b signals up to 18Gbps and resolutions up to 4K@60Hz with 4:4:4 chroma. While it doesn’t reach the 8K support of the other two, it provides a broad array of 55 video resolutions and 31 test patterns, including HDR testing and EDID management. Its portability and battery-powered operation make it suitable for both installation and troubleshooting. Compared to the other options, it may lack the highest resolution support but offers a user-friendly interface and extensive features for typical AV projects.
Pros:- Supports resolutions up to 4K@60Hz, with many test patterns
- Battery-operated, portable design
- Includes HDR testing, EDID read/write, and CEC support
Cons:- Limited to 18Gbps bandwidth, no 8K support
- RS-232 control requires an adapter
- Less suited for ultra-high-resolution testing
Best for: AV installers and technicians needing versatile, portable testing tools
Not ideal for: High-end 8K HDR testing or advanced professional troubleshooting
- Resolution Support:up to 4K@60Hz
- Video Bandwidth:18 Gbps
- Test Patterns:31
- Video Resolutions:up to 55
- HDR:Supported
- HDCP:2.2 / 1.4
- Control Interface:Panel buttons, RS-232
- Battery:3000mAh
Our verdict“A flexible, mid-range testing device that balances features with ease of use, ideal for standard AV setups but not for cutting-edge 8K workflows.”
How We Picked
We selected these products based on their resolution support up to 8K, feature sets including test patterns and analysis capabilities, portability, and user feedback. Priority was given to devices that balance ease of use with professional-grade features, ensuring options suitable for different levels of expertise and testing needs. We also considered compatibility with HDMI 2.1 and HDCP 2.3 standards, as well as overall value given their intended use cases.
Factors to Consider When Choosing Hdmi Test Pattern Generators For 8k
When choosing an HDMI test pattern generator for 8K, consider your specific needs: whether portability for field testing, advanced diagnostic features for professional troubleshooting, or a versatile middle ground for installation work. The right device helps verify signal integrity, test HDR and HDCP compliance, and ensure your equipment performs at the highest resolutions. Understanding key features like resolution support, bandwidth, test patterns, and connectivity options guides a more informed purchase.
Resolution and Bandwidth
For 8K testing, ensure the device supports at least 8K resolution at 60Hz with HDR, and provides bandwidth of 40Gbps or more for future-proofing. Devices supporting only 4K are insufficient for current 8K workflows, whereas higher bandwidth allows for more detailed testing and signal analysis.
Portability and Power
If you need to perform testing in the field or at multiple locations, portability and battery life become key factors. Devices like the BZBGEAR and TESTSIG offer portable, battery-powered operation, while professional tools like JTECH-40GA tend to be larger and plugged in, suited for lab environments.
Features and Complexity
High-end tools include extensive test patterns, EDID management, CEC control, and detailed analysis features. Casual users or installers may prefer simpler devices with fewer features, while professionals should prioritize comprehensive analysis capabilities to troubleshoot complex issues effectively.
Connectivity and Compatibility
Verify support for HDMI 2.1 and HDCP 2.3 to ensure compatibility with the latest HDMI standards. Additional features like S/PDIF, RS-232, or Ethernet may be important depending on your setup, especially for integration with other equipment.
Frequently Asked Questions
What resolution should a test pattern generator support for 8K testing?
For 8K testing, the device must support at least 8K resolution at 60Hz with HDR, along with a bandwidth of 40Gbps or higher. Lower resolutions or bandwidths will not accurately verify the performance of 8K HDMI signals and may miss critical issues related to high-resolution transmission.
Is portability important for HDMI test pattern generators?
Portability is vital if you perform testing at multiple sites or need to troubleshoot in the field. Battery-powered, compact devices like the BZBGEAR or TESTSIG are ideal for on-the-go use, while larger, mains-powered units are better suited for static, professional environments.
What features are essential for professional HDMI testing?
Professional-grade testers should include extensive test patterns, EDID management, CEC control, and detailed signal analysis. These features allow for comprehensive troubleshooting and verification, especially in high-end AV installations where signal integrity is critical.
Can these devices test HDR and HDCP compliance?
Yes, all three tested devices support HDR and HDCP verification, which are essential for ensuring your signals comply with current standards. This helps prevent issues like black screens or color errors during playback or transmission of high-resolution content.
Are professional tools overkill for casual users?
Generally, yes. Devices like the JTECH-40GA are designed for professional use and come with features that may overwhelm casual users. For basic testing or setup verification, simpler, portable devices like the BZBGEAR or TESTSIG often suffice and are easier to operate.
Conclusion
If you need a portable tool for quick, on-site testing of 8K signals, the BZBGEAR generator offers an excellent balance of resolution support and mobility. For high-end professional troubleshooting, the JTECH-40GA provides unmatched features and analysis capabilities, though at a higher complexity and likely cost. The TESTSIG serves well for installers and technicians seeking a versatile, mid-range device that supports resolutions up to 4K but can handle a variety of common AV testing scenarios. Your choice should align with your testing environment, expertise, and whether 8K resolution is a core requirement.
