Choosing the right AV test pattern generator depends on your specific needs—whether you’re a professional working with high-resolution HDMI signals or a hobbyist calibrating monitors in the field. The JTECH-40GA stands out for its 8K HDR testing capabilities, making it ideal for high-end AV setups. Meanwhile, the GME PG-16A offers a versatile, portable solution for calibrating computer and TV monitors, and the GME PG-28 provides an affordable, straightforward option for testing NTSC TVs. Each picks balances features against complexity and price, but understanding their differences is key to making an informed choice.
Complete the kit
Key Takeaways
- The JTECH-40GA excels in high-resolution, professional HDMI testing with advanced features but is complex for casual users.
- The GME PG-16A offers a broad range of test patterns and resolutions, perfect for calibration on the go, though it lacks digital interfaces.
- The GME PG-28 is the most affordable and simple, suited for basic NTSC TV testing but limited to just 8 test patterns.
- All options have portability, but the more advanced models support higher resolutions and additional features.
- Tradeoffs often involve ease of use versus feature set—higher-end models offer more control but are more complex.
| HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1 HDCP 2.3 CEC, Portable Design [JTECH-40GA] | ” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_FMwebp_.jpg” link=”0″] | Best for Professional HDMI Testing | Connector Type: HDMI | Compatible Devices: Audio Amplifier, Gaming Console, Laptop, Monitor, Television | Number of Ports: 2 | VIEW ON AMAZON | See Our Full Breakdown |
| GME PG-16A Portable Video Test Pattern Generator for PC, MAC, and TV Monitors |  | Best for Monitor Calibration and Field Use | Resolution Support: 8 PC & 4 MAC monitor resolutions | Test Patterns: Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster | Power: AC adapter or 9V battery | VIEW ON AMAZON | See Our Full Breakdown |
| GME PG-28 Portable Video Test Pattern Generator for TV and NTSC Monitor |  | Best for Basic NTSC TV Testing | Test Patterns: Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster | Power Options: AC adaptor or 9V battery | Designed In: USA | VIEW ON AMAZON | See Our Full Breakdown |
| av test pattern generator | Test Patterns |
|---|---|
| HDMI Test Signal Generator Ana | — |
| GME PG-16A Portable Video Test | Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster |
| GME PG-28 Portable Video Test | Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster |
More Details on Our Top Picks
HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1 HDCP 2.3 CEC, Portable Design [JTECH-40GA]
” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_FMwebp_.jpg” link=”0″]Best for Professional HDMI Testing
View on AmazonThe JTECH-40GA stands out for supporting resolutions up to 8K@60Hz with HDR, making it suitable for high-end AV setups. Its comprehensive feature set, including EDID read/write, CEC control, and detailed signal analysis, caters to professional environments that require precise validation. Compared to simpler devices, it offers more control and higher resolution support, but this complexity can be intimidating for casual users. Its portable design with a rechargeable battery makes it ideal for fieldwork, though its setup might be challenging without technical expertise.
Pros:- Supports ultra-high resolutions up to 8K@60Hz with HDR
- Includes extensive test patterns and signal validation features
- Portable with rechargeable battery for field use
Cons:- Complex setup that requires familiarity with HDMI specifications
- Limited to HDMI testing, not suitable for other AV signals
Best for: AV professionals or advanced enthusiasts needing high-resolution, comprehensive HDMI testing
Not ideal for: Casual users or those seeking a simple calibration device for everyday use
- Connector Type:HDMI
- Compatible Devices:Audio Amplifier, Gaming Console, Laptop, Monitor, Television
- Number of Ports:2
- Color:Black
- Supported Resolutions:Up to 8K 60Hz
- Bandwidth:40Gbps
Our verdict“Ideal for high-end AV professionals demanding detailed HDMI signal analysis in portable form.”

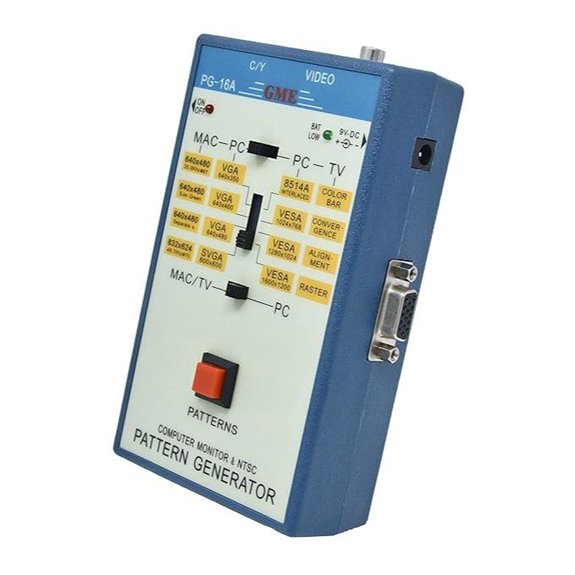

GME PG-16A Portable Video Test Pattern Generator for PC, MAC, and TV Monitors
The GME PG-16A offers a versatile set of 16 test patterns suited for calibrating PC, MAC, and TV monitors. Its support for multiple resolutions makes it a flexible tool for on-the-spot adjustments, especially useful for technicians working across different devices. While it doesn’t include advanced digital controls, its ease of operation with a single push button and lightweight design make it accessible for a range of users. However, it requires an external power source, which slightly limits its portability in the field compared to battery-operated models.
Pros:- Supports wide resolutions for PC, MAC, and TV monitors
- Large variety of test patterns for calibration
- Portable and lightweight for fieldwork
Cons:- Requires external power source (AC or 9V battery)
- Limited to testing and calibration, no digital interface
Best for: Field technicians, monitor calibrators, and hobbyists needing portable, multi-resolution testing
Not ideal for: Users needing detailed digital control or extensive pattern customization
- Resolution Support:8 PC & 4 MAC monitor resolutions
- Test Patterns:Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster
- Power:AC adapter or 9V battery
- Design:Portable, lightweight
Our verdict“A strong choice for portable monitor calibration with broad pattern support but limited digital features.”
GME PG-28 Portable Video Test Pattern Generator for TV and NTSC Monitor
The GME PG-28 provides a straightforward, affordable solution for testing and calibrating NTSC TVs and monitors. Its selection of eight common test patterns covers essential calibration needs without complexity, making it suitable for hobbyists or field technicians working with older or standard-definition displays. While it lacks extensive pattern options and advanced digital controls, its simplicity and portability are appealing for those seeking a quick, no-fuss device. Battery operation adds to its convenience, though the limited pattern set might not suit more detailed calibration tasks.
Pros:- Lightweight and portable for field use
- Simple to operate with easy pattern selection
- Affordable for basic testing needs
Cons:- Limited to only 8 test patterns
- Requires batteries or AC power for operation
Best for: Basic NTSC TV testing and calibration in field or bench settings
Not ideal for: High-resolution or digital AV setups needing detailed analysis
- Test Patterns:Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster
- Power Options:AC adaptor or 9V battery
- Designed In:USA
Our verdict“A practical, budget-friendly option for simple NTSC TV testing and basic calibration tasks.”
How We Picked
Our selection process focused on evaluating the core functionalities needed for AV test pattern generators across different use cases. We prioritized devices that support multiple resolutions, offer a variety of test patterns, and provide portability. We also considered ease of use, compatibility with common devices, and the presence of advanced features such as pattern customization or digital interfaces. Cost and user-friendliness played key roles, ensuring our picks are relevant for both professionals and enthusiasts. Devices that are overly complex or limited in pattern options were excluded, aiming for a balanced lineup that covers high-end, mid-range, and budget needs.
| av test pattern generator | Test Patterns |
|---|---|
| HDMI Test Signal Generator Ana | — |
| GME PG-16A Portable Video Test | Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster |
| GME PG-28 Portable Video Test | Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster |
Factors to Consider When Choosing Av Test Pattern Generators
Selecting the right AV test pattern generator depends on your technical needs, device compatibility, and budget. Whether you require professional-grade high-resolution testing or a simple portable tool for field calibration, understanding each device’s strengths and limitations will help you make an informed decision.Professional-Grade HDMI Testing
If your focus is on high-resolution HDMI signals, especially for 8K HDR setups, the JTECH-40GA provides comprehensive features, advanced control, and portability, but at a higher complexity and cost. It is best suited for AV specialists who need detailed signal validation and troubleshooting capabilities.
Portable Monitor and TV Calibration
The GME PG-16A offers a versatile set of patterns and resolutions, making it ideal for calibrating multiple displays in the field or on the bench. It balances portability with broad support, but lacks digital interfaces and advanced features found in higher-end models.
Budget-Friendly Basic Testing
The GME PG-28 is perfect for basic NTSC TV calibration, offering an easy-to-use interface and affordability. Its limited pattern set suits simple testing scenarios, but it doesn’t support high resolutions or extensive digital controls.
Frequently Asked Questions
What should I consider when choosing an AV test pattern generator?
Focus on what devices you’ll be testing—professional high-resolution HDMI signals or simpler monitor calibrations—and whether portability or advanced features are more important. The resolution support, pattern variety, digital controls, and ease of use are key factors that influence your choice.
Are portable test pattern generators suitable for professional use?
Yes, some portable options like the JTECH-40GA provide professional-grade features in a portable form factor, making them suitable for fieldwork and on-site diagnostics. However, their complexity and cost are higher compared to basic models.
Can these devices test all types of AV signals?
Most are specialized: the JTECH-40GA tests HDMI signals up to 8K HDR, while the GME models focus on monitor or NTSC TV signals. For comprehensive multi-signal testing, dedicated devices or multiple tools may be necessary.
Do I need digital interfaces or advanced controls?
If precise calibration, pattern customization, or detailed signal analysis is required, look for devices with digital interfaces and advanced controls. Simpler models prioritize basic pattern display and portability, which might suffice for straightforward tasks.
What is the best choice for beginners?
The GME PG-28 is ideal for beginners due to its straightforward operation, limited pattern options, and affordability. More advanced users should consider higher-end models for additional features and flexibility.
Conclusion
For professionals working with high-end AV setups and requiring detailed analysis, the JTECH-40GA provides unmatched resolution and features, though it demands technical knowledge. Hobbyists and field technicians testing monitors or older TVs will find the GME PG-16A or GME PG-28 more suitable, depending on their need for pattern variety and ease of use. Budget-conscious users seeking simple calibration tasks should lean toward the GME PG-28, while those needing a versatile, portable testing device should consider the PG-16A. Each choice balances complexity, features, and price to match different user profiles.
