2 Best AV Signal Generators for Troubleshooting in 2026
Many AV signal generators in 2026 offer advanced features that can simplify troubleshooting—discover which two stand out to transform your diagnostic process.
For troubleshooting in 2026, I recommend the Monoprice HDMI Signal Generator and the Signal Generator Kit with XR2206. The Monoprice unit offers excellent device compatibility, 4K resolution support, and simple setup, making it ideal for quick diagnostics. The XR2206 kit provides adjustable frequencies and stable signals for complex testing scenarios. Both tools feature diverse testing patterns and precise outputs. Keep going, and you’ll discover how these tools can streamline your troubleshooting process even further.

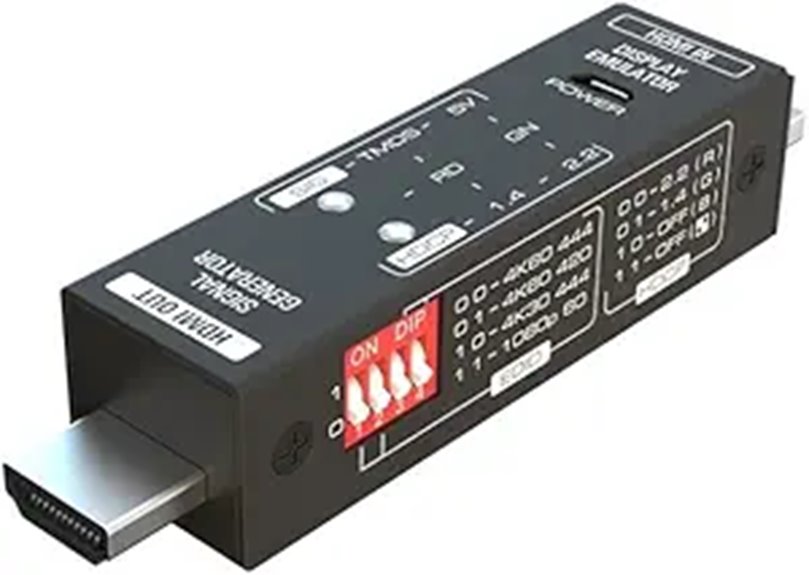

If you’re looking for a reliable tool to troubleshoot HDMI signals and display issues, the Monoprice HDMI Signal Generator and Display Analyzer is an excellent choice. It functions as both a signal generator and display emulator, offering versatile testing options. Supporting resolutions up to 4K@60Hz 4:4:4 and 1080p@60Hz, it covers most modern display needs. The device handles HDCP testing with support for HDCP OFF, 1.4, and 2.2, including four test patterns for compliance checks. With a simple 4-pin DIP switch for quick configuration, it’s user-friendly and efficient for diagnosing HDMI problems and verifying display performance.
Functionality:HDMI signal generator and display analyzer
Waveform Types:Not specified (focused on HDMI signals and test patterns)
Power Supply:Not specified
Adjustability:Configurable via DIP switch for resolution/HDCP
Output Range:Supports multiple HDMI resolutions (up to 4K@60Hz)
Ease of Use:User interface with DIP switch for configuration
Additional Feature:Multiple HDCP test patterns
Additional Feature:4-pin DIP switch configuration
Additional Feature:Supports 4K@60Hz 4:4:4

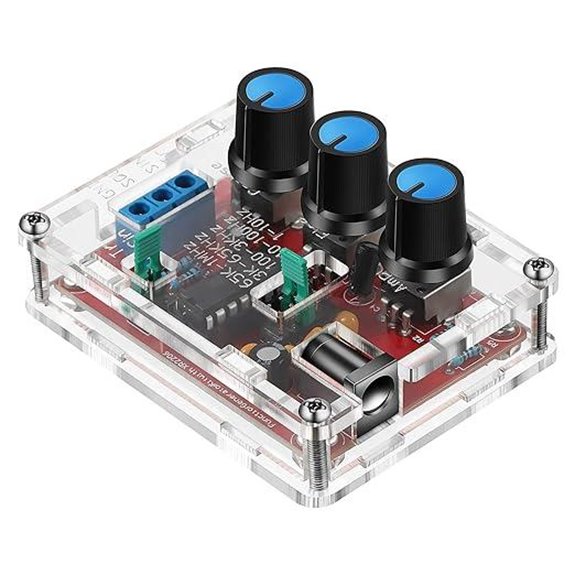

Signal Generator Kit XR2206 Adjustable Frequency 1Hz-1MHz
The Signal Generator Kit with XR2206 stands out as an ideal choice for DIY enthusiasts and technicians who need precise, adjustable frequency signals for troubleshooting. This kit features a DIY assembly with a transparent case, making it easy to monitor the internal components. It operates on a 9-12V DC power supply and generates sine, triangle, and square waveforms from 1Hz to 1MHz. With low distortion (<1% at 1KHz) and excellent flatness, it ensures reliable testing. Although it requires soldering, its adjustable frequency and waveform versatility make it perfect for technical projects needing accurate signal generation.
Functionality:Adjustable frequency signal generator
Waveform Types:Sine, Triangle, Square
Power Supply:9-12V DC
Adjustability:Fully adjustable frequency and waveform
Output Range:1Hz to 1MHz frequency range, 0-3V amplitude
Ease of Use:DIY assembly with transparent case and soldering required
Additional Feature:Transparent DIY case
Additional Feature:Requires soldering tools
Additional Feature:Linear triangle waveform up to 100kHz
Factors to Consider When Choosing AV Signal Generators for Troubleshooting
When selecting an AV signal generator, I focus on key factors like compatibility with my devices and the range of resolution support, which guarantee it meets my testing needs. Ease of setup and signal stability are vital for efficient troubleshooting, while testing pattern options help identify specific issues quickly. Considering these points helps me choose a tool that’s reliable, versatile, and user-friendly.
Compatibility With Devices
Choosing the right AV signal generator means guaranteeing it’s compatible with your devices’ input and output interfaces, such as HDMI, VGA, or RCA. I look for a device that supports the specific connection types I use regularly. It’s also important that the generator can produce signal formats and resolutions matching my equipment’s specifications. Adjustable parameters like frequency and bandwidth help me tailor signals to my devices’ operational range. I also verify whether it complies with HDCP or encryption standards, avoiding issues during testing. Additionally, I check if the generator can emulate or replicate the signals my devices output, providing extensive troubleshooting options. Compatibility ensures seamless integration, reduces troubleshooting time, and guarantees accurate test results.
Resolution Support Range
Supporting the maximum resolution your tests require is essential, especially as modern displays often demand 4K@60Hz or higher. I look for signal generators that can handle these high resolutions to guarantee accurate troubleshooting. It’s important they support multiple resolutions, allowing me to verify compatibility across different devices and standards. I also check if they support both standard and custom resolutions, which helps when dealing with unique or non-standard setups. Additionally, a good generator should emulate various signal formats and resolutions simultaneously, providing a thorough testing environment. Ensuring the device’s resolution support matches the specifications of the AV equipment I’m working on guarantees precise diagnostics. This way, I can confidently identify issues without worrying about resolution limitations skewing results.
Ease of Setup
Selecting an AV signal generator that’s easy to establish can save you a lot of time and frustration during troubleshooting. Look for models with simple, clearly labeled controls like knobs or DIP switches for quick configuration. Devices that come with straightforward setup instructions and minimal calibration requirements make the initial setup smoother. A user-friendly interface, such as clear displays or indicators, helps verify settings easily. Compatibility is also key—choose a generator with common input/output connections to match your existing equipment effortlessly. Additionally, features like preset modes or automated testing options can simplify the process, allowing you to get up and running with minimal fuss. Prioritizing ease of setup ensures you spend less time configuring and more time troubleshooting effectively.
Signal Accuracy and Stability
When troubleshooting AV systems, signal accuracy and stability are essential for reliable diagnostics. Precise signals that match expected output parameters help minimize diagnostic errors and ensure tests reflect real system conditions. Stability over time and temperature variations prevents false faults caused by signal drift, which can lead to unnecessary repairs or overlooked issues. High frequency stability is crucial when diagnosing high-speed digital and HDMI systems, ensuring signals stay within tight tolerances. Low harmonic distortion in waveform outputs guarantees test signals don’t introduce inaccuracies or masking effects that could skew results. Additionally, accurate amplitude control and calibration are vital for verifying system performance, detecting issues like signal attenuation or amplification problems. Overall, choosing a generator with excellent accuracy and stability leads to more precise, dependable troubleshooting outcomes.
Testing Pattern Options
Choosing the right testing patterns on an AV signal generator thoroughly enhances troubleshooting accuracy by allowing extensive verification of display and signal integrity. Different patterns, like color bars, test grids, and checkerboards, help identify issues such as color accuracy, pixel alignment, and signal stability. Having multiple options guarantees compatibility across various HDMI and display standards, including HDCP versions. Some generators offer static images, while others provide dynamic sequences, allowing you to evaluate performance over time. This versatility helps simulate real-world scenarios, making it easier to pinpoint faults and verify repairs. Ultimately, a broad range of test patterns equips you with the tools to conduct thorough diagnostics, ensuring your equipment displays accurate, stable signals under different conditions.
Power and Portability
A portable AV signal generator needs to be lightweight and compact so I can carry it easily during troubleshooting tasks. This makes it simple to move between sites and reduces fatigue during extended use. Battery-powered options are a big plus, as they let me operate without constantly hunting for power outlets, increasing my mobility. However, smaller devices might have fewer input and output options, so I need to balance portability with necessary connectivity features. Durability is also critical; a sturdy casing helps protect the device from damage in field conditions. Power efficiency matters too, as longer battery life means I can work longer without recharging, saving time and reducing interruptions. Overall, choosing a generator that combines portability, power management, and durability ensures reliable performance on the go.
Frequently Asked Questions
How Long Do AV Signal Generators Typically Last?
AV signal generators usually last between 5 to 10 years, depending on usage and maintenance. I’ve found that proper care, like regular calibration and avoiding rough handling, can prolong their lifespan. If you invest in a quality model and keep it well-maintained, you might even get more years out of it. Ultimately, routine checks and timely repairs help ensure your generator stays reliable for troubleshooting needs.
Can Signal Generators Test Multiple Video Formats Simultaneously?
Think of a signal generator like a multitasking chef in a busy kitchen. It can test multiple video formats at once, ensuring everything runs smoothly. Most modern AV signal generators are designed with this capability, allowing simultaneous testing of HDMI, DisplayPort, and SDI signals. This helps troubleshoot quickly and efficiently, saving time and reducing errors. It’s like having a chef who handles all stations at once, keeping the kitchen running seamlessly.
Are Portable AV Signal Generators Suitable for Field Troubleshooting?
Yes, portable AV signal generators are perfect for field troubleshooting. I find they’re compact and easy to carry, making it simple to diagnose issues on-site quickly. They offer versatile testing options for different signals, which is essential when working in various environments. Plus, their battery-powered design means I can use them without relying on power outlets, ensuring I stay productive even in remote locations.
What Is the AVerage Cost of Professional AV Signal Generators?
I’ve found that professional AV signal generators typically cost between $2,000 and $10,000, depending on their features and capabilities. I always recommend investing in a model that matches your specific troubleshooting needs, as cheaper units might lack essential functions. It’s worth noting that higher-end generators provide more precise signals and advanced diagnostics, which can save you time and money in the long run.
Do Signal Generators Require Calibration Before Each Use?
No, signal generators don’t usually require calibration before each use. I find that occasional calibration, as recommended by the manufacturer, helps maintain accuracy, especially after long periods of storage or heavy use. Regular calibration ensures reliable test signals, which is vital for troubleshooting. However, for daily tasks, a well-maintained generator typically performs accurately enough without frequent recalibration, saving time and effort.
Conclusion
Choosing the right AV signal generator is like selecting a reliable compass on a journey—guiding you through complex troubleshooting with clarity and precision. Whether it’s the Monoprice device or the XR2206 kit, these tools serve as your trusted guides, illuminating unseen issues and steering you toward seamless connections. In the end, your choice reflects not just equipment, but your commitment to clear communication and flawless entertainment. Trust your compass, and let your troubleshooting path be smooth.
